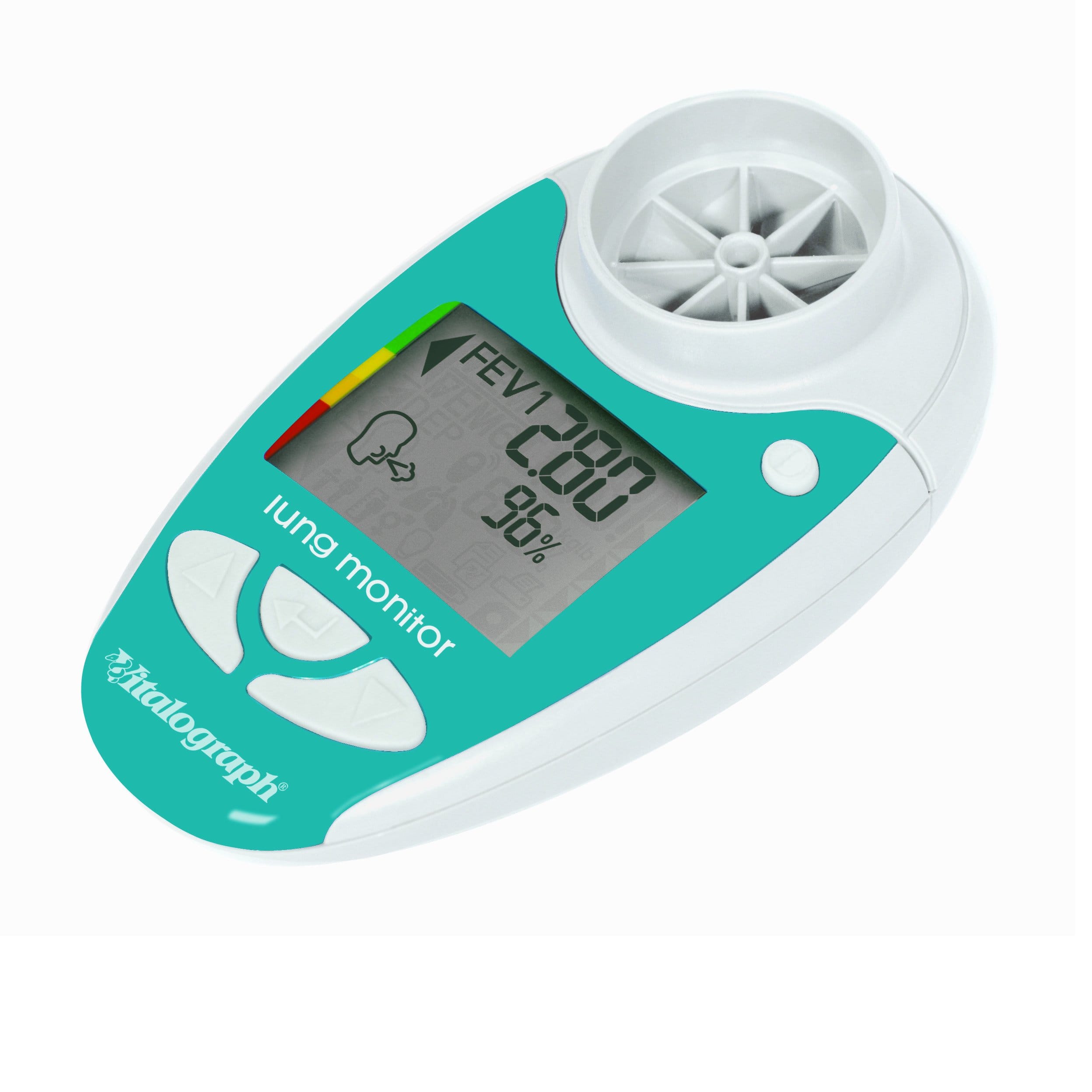

Vitalograph Respiratory Lung Monitor
Please login to view pricing
Vitalograph Respiratory Lung Monitor
Vitalograph lung monitor is a easy to use home monitoring device which records lung function parameters
Easy to use device for monitoring of lung function parameters for those with respiratory conditions including cystic fibrosis and transplant patients. The lung monitor measures FEV1, FEV6 & the ratio with electronic and hard copy reports. The device is simple to use and stores over 200 test sessions.
- For simple, accurate lung function monitoring at home
- Measures FEV1, FEV6 and the ratio
- Displays % of personal best FEV1
- Large, easy to read display
- Electronic record – no need for record cards
- Automatically stores best values in a test session
- Quality of blow indicator
- Suitable for multi-subject use in clinic with Vitalograph Bacterial Viral Filters (eco BVF)
- Uses long life AAA batteries
- Language independent
- Meets ATS/ERS:2005 Spirometry Guidelines
| Product | Vitalograph lung monitor |
| Model Number | 4000 |
| Part Number | 40500, 40400, 40750, 40950 |
| Description | Vitalograph lung monitor, Vitalograph lung monitor usb, Vitalograph lung monitor bluetooth, Vitalograph lung monitor serial |
| Parameters Displayed | FEV1, FEV6 , FEV1/FEV6 ratio and FEF |
| Memory | FEV1, FEV6 , FEV1/FEV6 ratio and FEF |
| Quality of Blow Indicator | Yes |
| Accuracy | Better than +/- 3% |
| Range | 0 - 9.99 L BTPS |
| Sensor | Stator rotor |
| Flow Impedance | Better than 0.15 kPa/L/s at 14 L/s |
| Power Supply | AAA batteries |
| Display | Custom liquid crystal display |
| Size | 113 x 63 x 48mm |
| Weight | 55g net |
| Performance standards | ISO 26782:2009 ISO 23747:2007 ATS/ERS Guidelines 2005 |
| Operating Temperature Range | 17 - 37°C |
| Management Zones | Factory set 3 zones Green/Yellow threshold 95% Yellow/Red threshold 90% Zones may be changed by the user And number of zones increased to 4 |
| Safety Standards | IEC 60601-1:2005 |
| Medical Safety Standard | Medical Devices Directive 93/42/EEC |
| Designed and manufactured to following QA/GMP standards | ISO 13485:2003 FDA 21CFR820 CMDR |
