Vitalograph Compact Spirometer and ECG

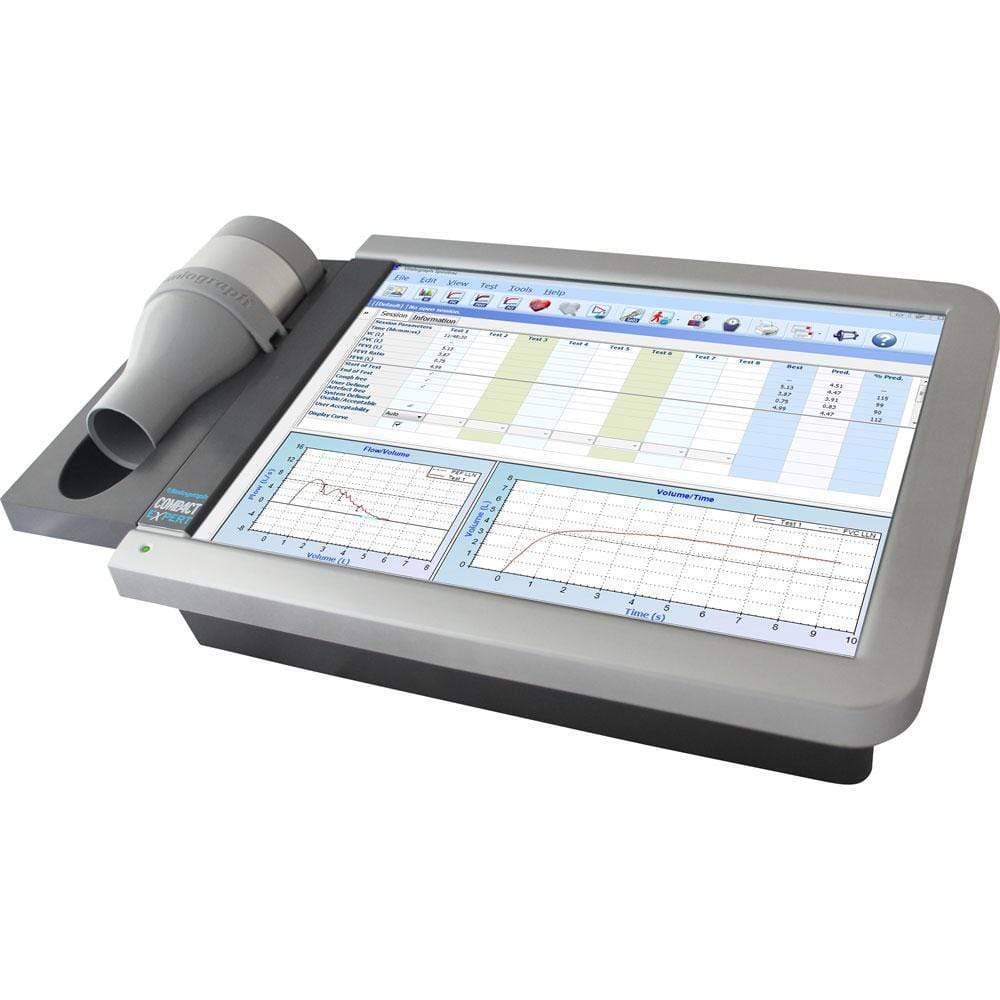

Vitalograph Compact Spirometer

Cardio-Respiratory Diagnostic Workstation

Vitalograph are proud to introduce the COMPACT Expert, the world’s first stand alone, networkable spirometer workstation. The easy to use COMPACT can be incorporated into your facility’s network to share data with other networked COMPACT spirometers - without requiring a PC.

A typical installation would be a data server, online printers and several PCs and COMPACT devices all talking to each other and sharing data and resources. By loading the free Spirotrac viewer software onto your networked PC workstation, spirometry data on the networked COMPACT can be viewed directly. The COMPACT also offers a host of integrated cardio-respiratory testing, data management and customization capabilities.

The COMPACT Expert medical workstation features:

  • 12.1 inch color touch screen display
  • Class IIa Medical Device
  • Spirotrac software integrating the management of your subjects, visits and all of your clinical testing
  • Designed for secure encrypted data transmission via the internet to Vitalograph hosted central servers for analysis, review, over-reading, reporting and archiving

Vitalograph COMPACT for communication and training

  • Ethernet x 2
  • Serial ports x 2
  • USB 2.0 x 6
  • Bluetooth® and WiFi dongle option
  • Audio out (stereo) and microphone input
  • DVI video output for connection to a monitor or projector
  • Integrated GDT & HL7 Data Transfer Protocols


  • Intuitive user interface with workflow orientated presentation
  • Subject list, test session list, dynamic information panel and session data in one view
  • Automatic FEV1 trend chart view as subject is selected
  • Open session, f/v & v/t curves, all test data, test quality and subject demographics in one view
  • Automatic storage of all test data and events, including calibration log
  • Attractive incentive displays for children, designed to maximise interest and effort
  • View real-time curves through the incentives
  • Comprehensive reports for spirometry and trending including PDF generator for remote electronic filling and e-mailing
  • Configurable spirometry reports
  • Manual data entry and data export facility
  • Mannitol/Bronchial Challenge Testing

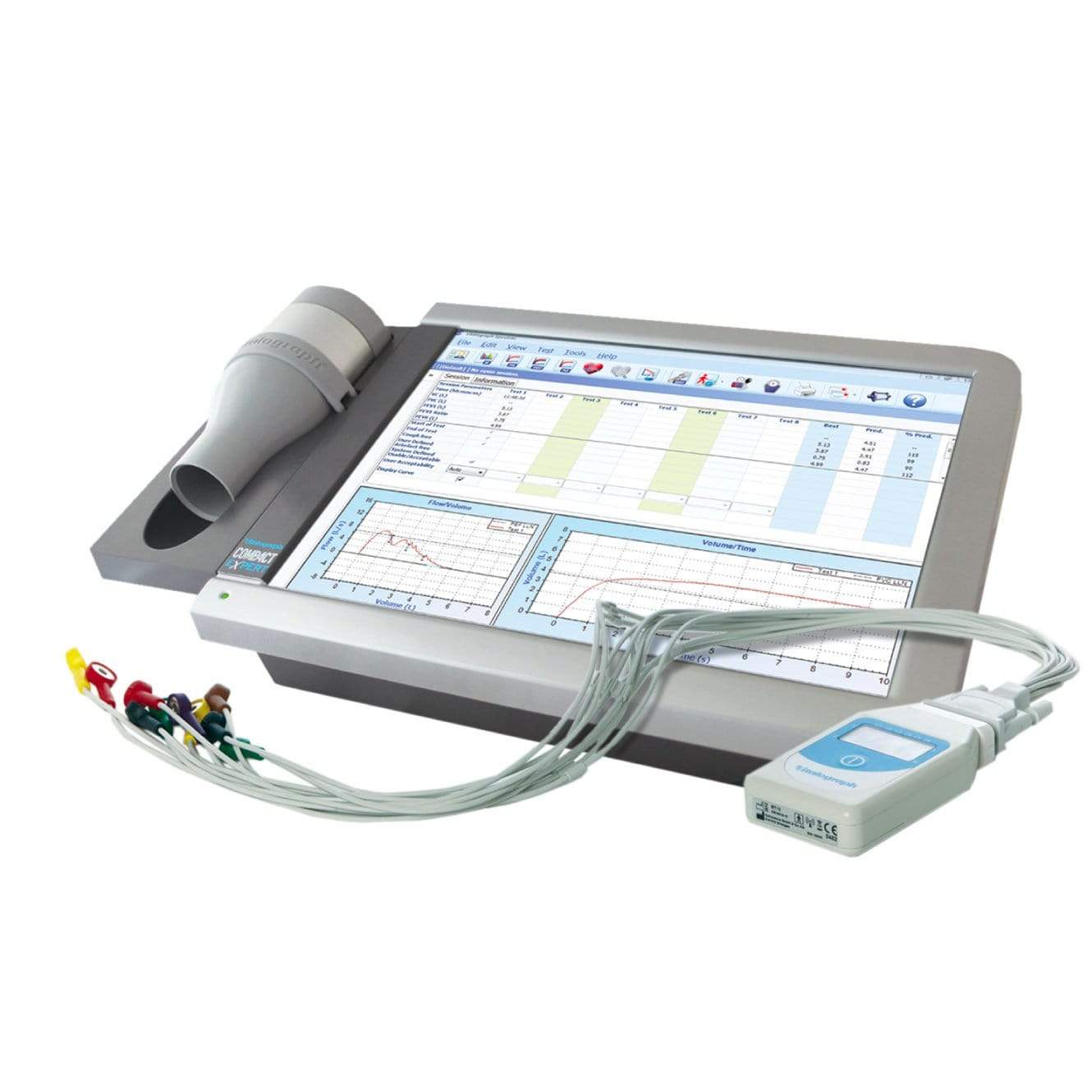

ECG 12 Lead

The 12-lead ECG enables full 12-lead electrocardiography with very low occurrence of lead artefact. Analysis and interpretation come as standard using the world class University of Glasgow interpretation algorithm which provides detailed diagnostic suggestions and evaluation of results. ECG measurements are captured and transmitted wirelessly for display in real-time and data is automatically saved for recall, reporting or printing. Transmitting ECG traces wirelessly is fast and safe with no leads to trip over or create artefacts from movement or electrical sources. The built-in display provides information on electrode contact problems, heart rate, battery status, communication status and digital pacemaker detection. The 12-lead resting ECG data is reviewed in accordance with the requirements of the study protocol by trained cardiologists.

  • Operator controlled selection of a 10-s sample trace, but can capture and store several minutes of 12-lead ECG recording
  • Visual electrode contact indication to assist operator
  • Wireless data transmission via Bluetooth (range:approx. 10m)
  • High quality multi-channel and 12-lead overview for viewing and printing
  • Print configurable 1 or 2 page reports
  • View traces as 1 x 12; 2 x 6 or 3 x 4 plus rhythm strip
  • Calculation of the heart rate with acoustic and visual signal
  • Full range of parameters are available (e.g. P duration,PQ interval, QRS period)
  • Automatic pacemaker detection
  • Rhythm analysis
