SpiroConnect Wireless PC Based Spirometer

Notify me when this product is available:

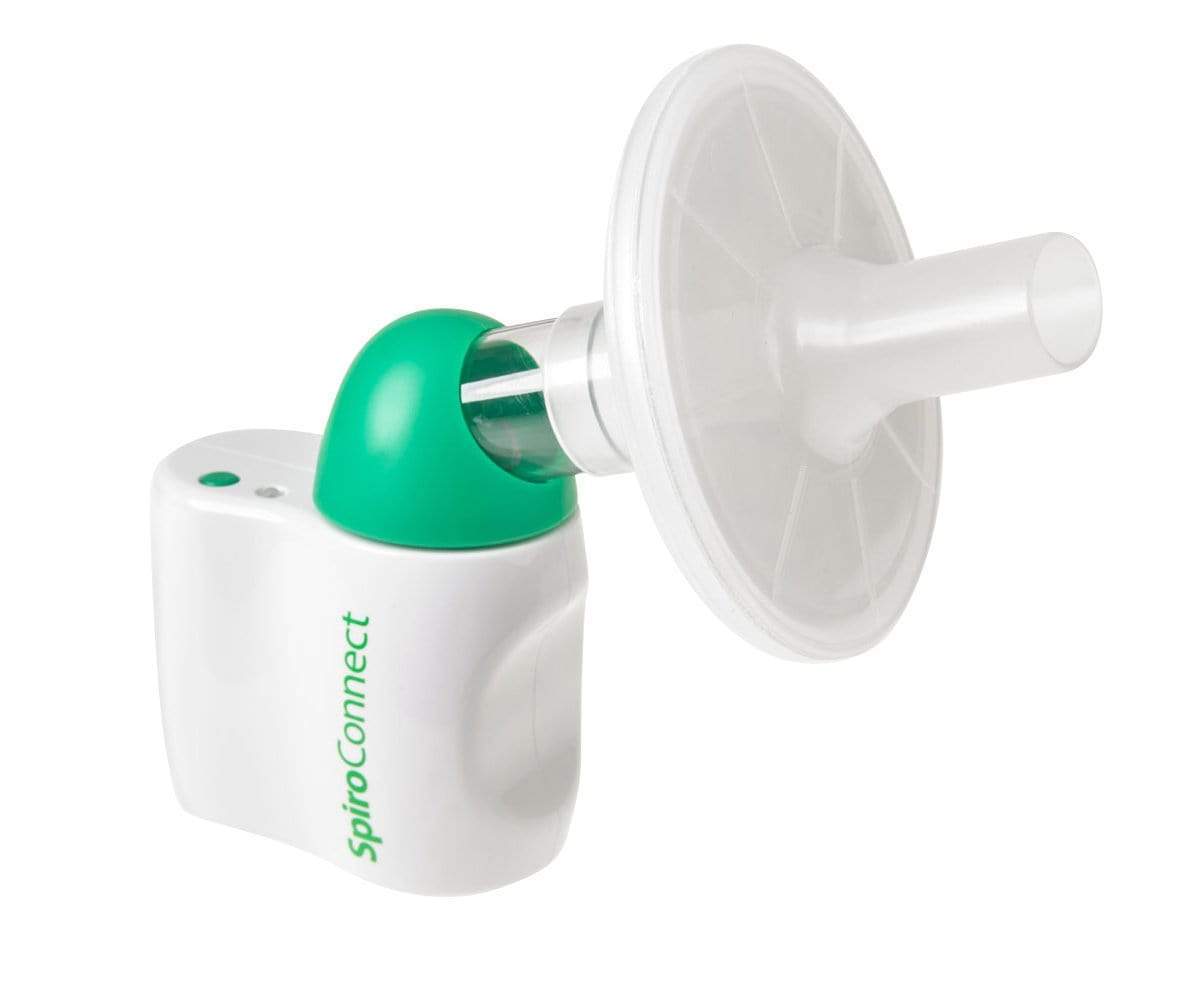

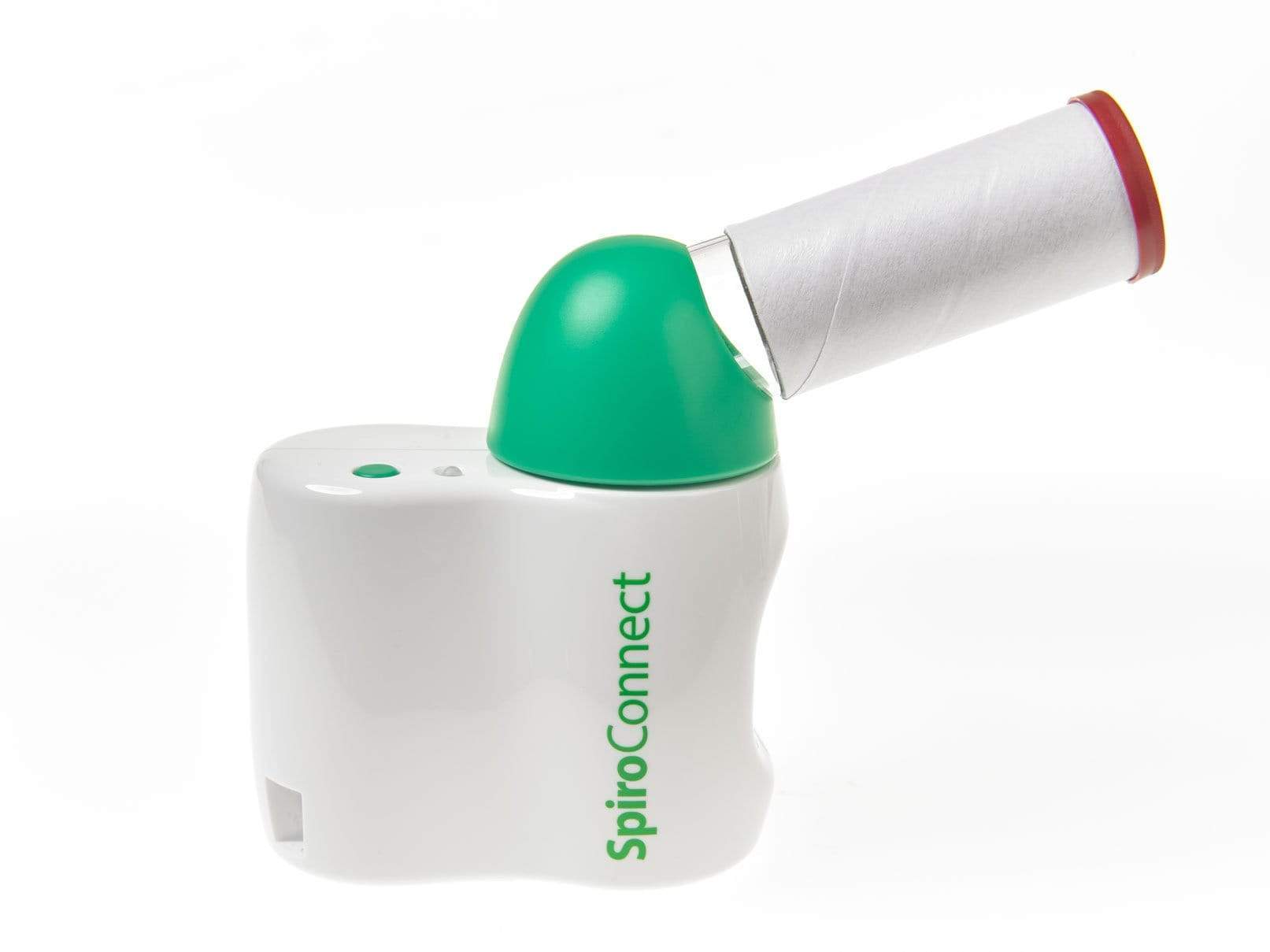

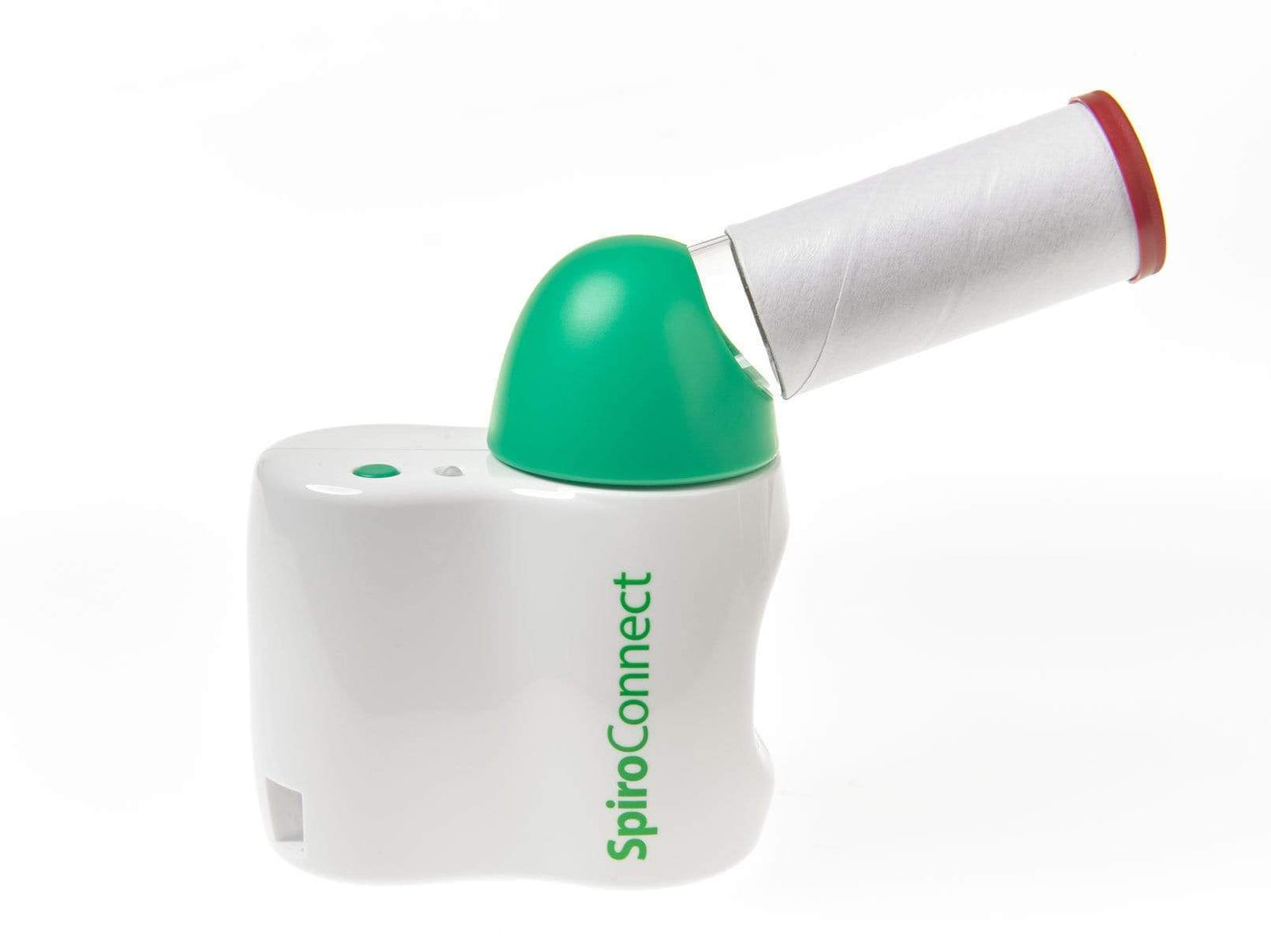

SpiroConnect is the most accurate and simple to use wireless PC Based spirometer available. It usesproven turbine technologybut with a range of innovative enhancements.

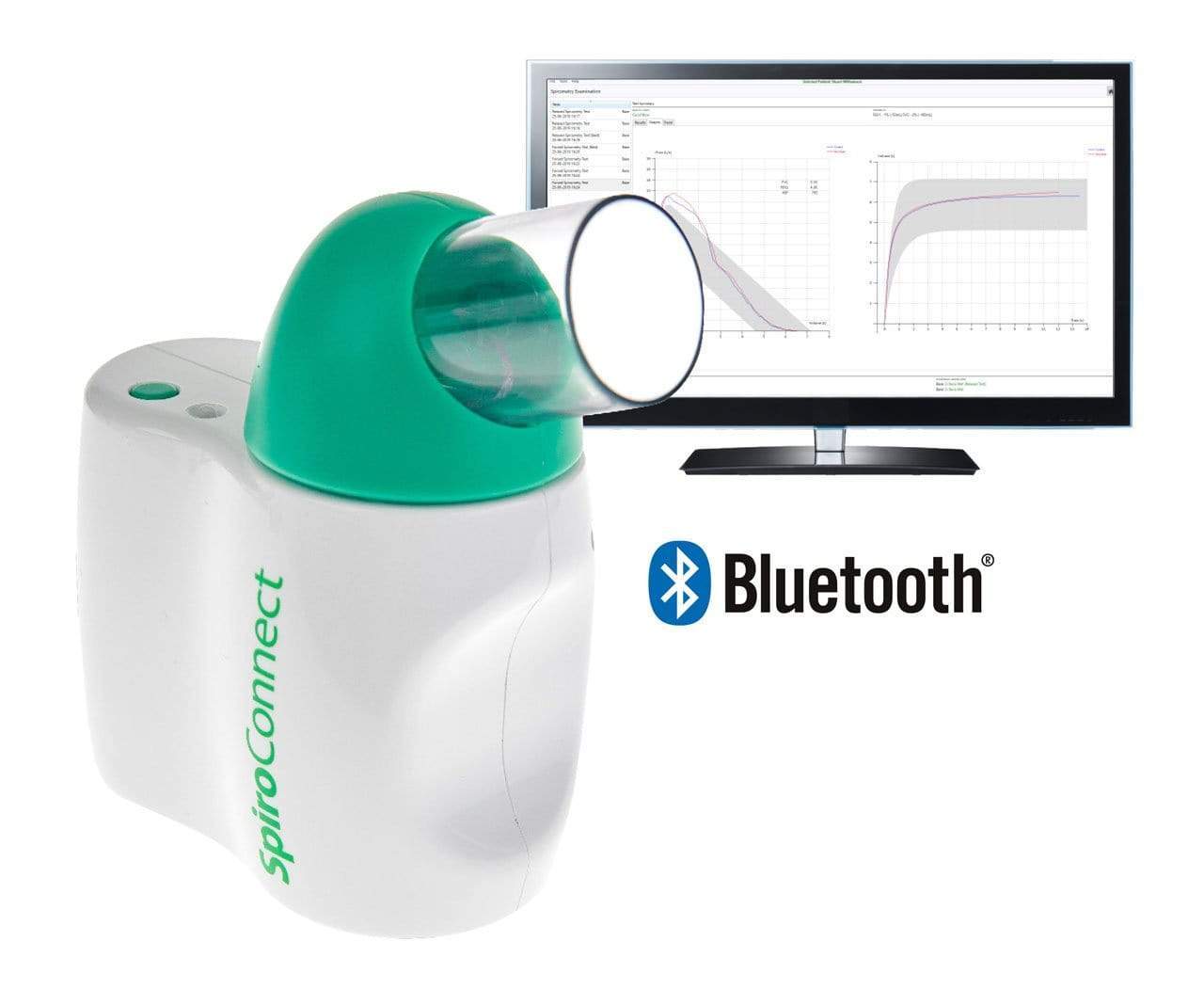

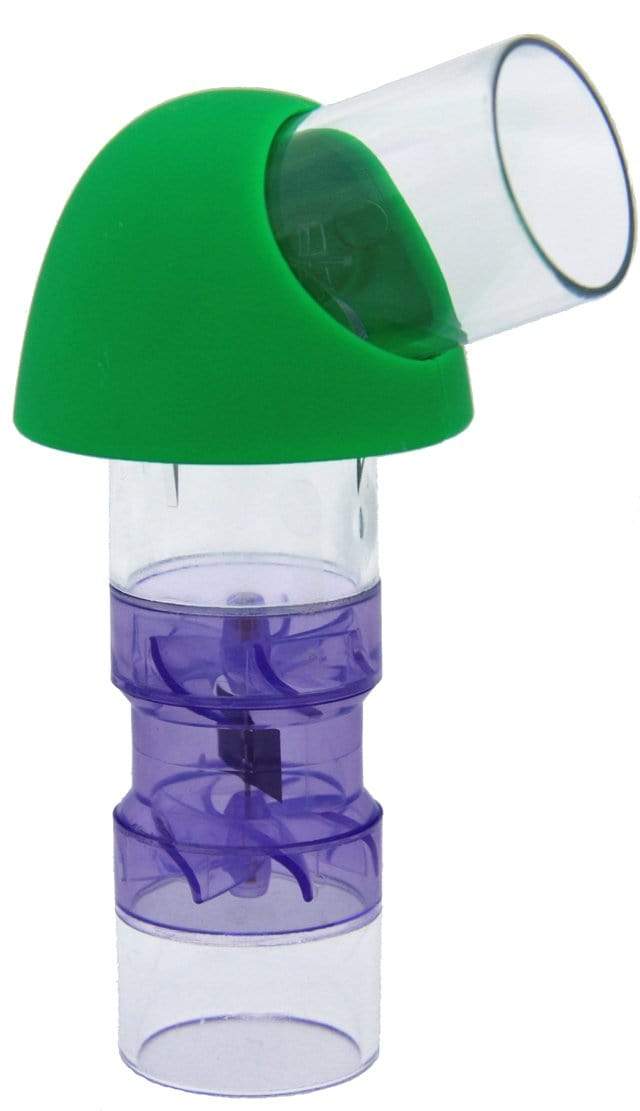

By orientating the turbine vertically rather than horizontally, there is less rotational resistance which makes itmore sensitive to low flow ratesthan other turbine spirometers. This, in addition to the use of an advanced antistatic plastic, significantly enhances measurement accuracy, particularly when testing COPD and Asthma patients. The latest Bluetooth technology means it can be used as a portable device connecting wirelessly to a PC, laptop or tablet.

Designed by the inventor of the MicroLab, MicroLoop and SpiroUSB spirometers, SpiroConnect is perfect for the busy GP surgery.

SpiroConnect is endorsed byRespiratory Matters,a recognised centre in spirometry training in primary care. It features the new Global Lung Initiative(GLI) Predicted Values asrecommended by the Association for Respiratory Technology and Physiology (ARTP).

Transducer Type Bi-directional high sensitivity vertical turbine
Measurements VC, FEV0.75, FEV1, FEV3, FEV6, FVC, PEF, FEF25 (MEF75), FEF50 (MEF50), FEF75 (MEF25)

FEF25-75 (MMEF), FIV1, FIVC, PIF, FIF25 (MIF75)

FIF50 (MIF50), FIF75 (MIF25), MET25-75, FET, EVC, IVC, IC, VT (TV), Ti, Te, IRV, ERV, Vext, FEV0.75/VC, FEV0.75/FVC, FEV1/VC, FEV1/FVC (FER) , FEV3/VC, FEV3/FVC, FEV0.75/FEV6, FEV1/FEV6, FEF50/VC, FEF50/FVC, MMEF/FVC (FEF25-75/FVC) , FIV1/FIVC (FIR), R50 (FEF50/FIF50), Ti/Ttot, VT/Ti (TV/Ti), Lung Age, MVVind (FEV1x0.35)
Accuracy To ISO 26782 and ATS 2005 standards
Sensitivity Better than 0.025l/s
Power Supply 2 x AA size Alkaline primary cells

Operating Current

110 mA peak

Battery Life Alkaline cells, greater than 100 measurement cycles
Dimensions 55mm(W) x 100mm(D) x 110mm(H)
Weight
(including batteries)
200g
Operating Conditions 10°C to 38°C, 15% to 95% RH, non-condensing, altitude up to 3,000m
Transport
and Storage Conditions
-20°C to 70°C, 15% to 95% RH, non-condensing
Lifetime 5 years
Flow Range 0- 14l/s
Volume Range 0 to 8l

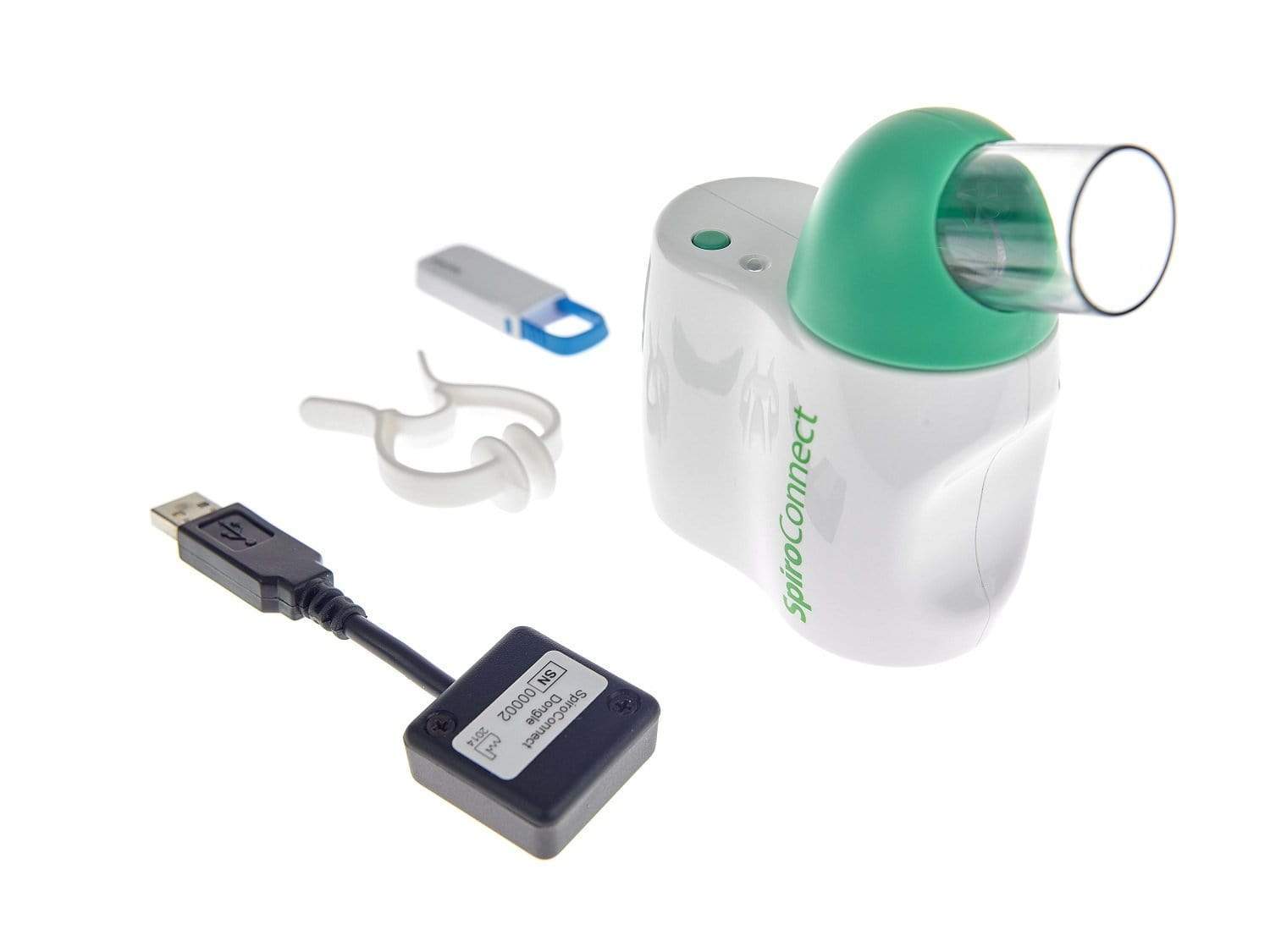

What's inside the package?

  • SpiroConnect Spirometer
  • SpiroConnect PC software
  • USB Bluetooth dongle
  • 100 x One-way mouthpieces
  • PeraSafe sterilising agent
  • Protective carry case

*Please note: ongoing i3 licensing cost applies after the first year
