Riester RCS-100 Camera

Riester RCS-100 Camera

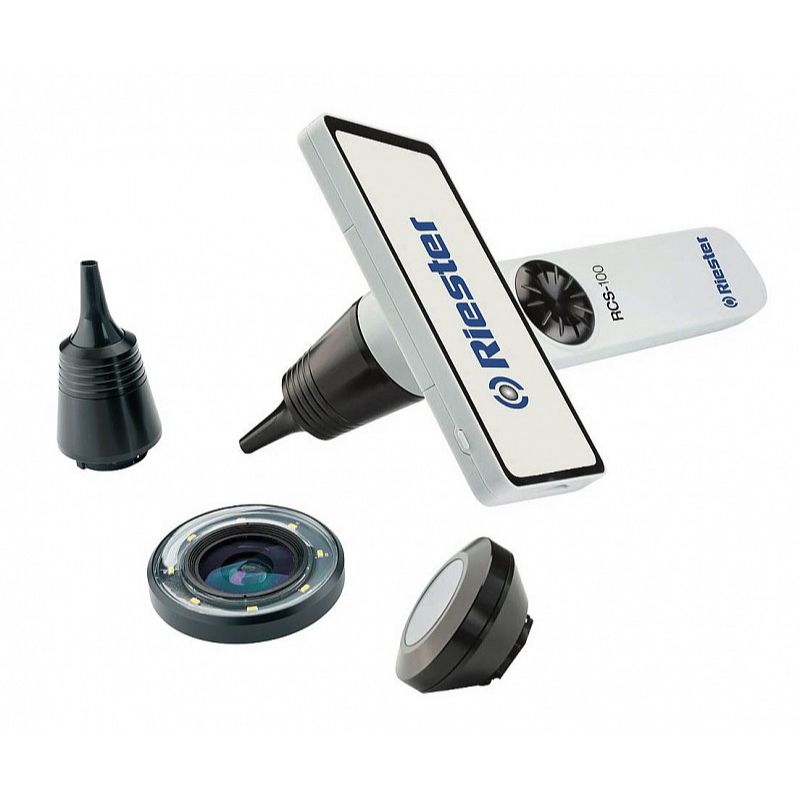

RCS-100 digital, portable and multifunctional medical camera system.

With the RCS-100, Riester introduces a new generation of a digital medical camera system with a full range of lenses.

Available with 3 lenses:

• Otoscope lens
• General lens
• Dermatoscope lens

Features:

• Rotary wheel: For one-hand operation
• Digital camera: Allows accurate first diagnosis and planning of consistent follow-up treatment
• Touch screen: Easy to use
• Change of lens: Fast and easy
• Multi functional diagnosis: ENT, dermatology and general practice
• LCD screen: 5“ full HD colour TFT-LCD display 1.280 x 720 pixel Including scratch proof cover
• 8 MP CMOS: High resolution, scaleable image
• Image/Video format: Picture: JPEG, Video: MP4
• Focus settings: automatic (otoscope/general lens) manual (all lenses)

Otoscope lens:

• Enhanced view of auditory canal
• Disposable and reusable specula mm (in): 2 (0.08), 3 (0.12 ), 4 (0.16) and 5 (0.20)
• Light source: Visible white LED
• LED colour temperature: 4.000 K
• Size mm (in): 73.5 (2.89) x 40 (1.57) x 40 (1.57)
• Resolution: 8 MP CMOS
• Air channel for pneumatic test (compatible with existing Riester connector)
• Focus range mm (in): 8 - 25 (0.31 - 0.98)

Field of view at a distance from the object of (with specula Ø 4 mm):

• 25 mm (0.99 in): 12 (0.47)
• 15 mm (0.60 in): 9 (0.35)
• 10 mm (0.40 in ): 8 (0.31)
• Magnification on display: 6 x

Dermatoscope lens:

Accurate identification and measurement of skin lesions. No immersion necessary.

• Light source: Visible white LED
• LED colour temperature: 4.000 K
• Field of view mm (in): 30 Ø (1.18)
• Resolution: 8 MP CMOS
• Digital movable ruler
• Optical magnification: 2.5 x (from optics)
• Displayed magnification: 2 x - 8 x
• Digital magnification: 4 x (on top)
• Size mm (in): 62.1 (24.4) x 62.1 (24.4) x 36 (1.42)

General lens:

• Light source: Visible white LED
• LED colour temperature: 5.500 K
• Focus range mm (in): 30 - 4.000 (1.18 - 157.48)
• Display magnification at 30 mm distance to the object: 1.0 x - 4.0 x
• Resolution: 8 MP CMOS
• Field of view: 78°
• Optical magnification: 2 x
• Digital magnification: 4 x
• Size mm (in): 60.5 (23.82) x 60.5 (23.82) x 19 (0.75)
