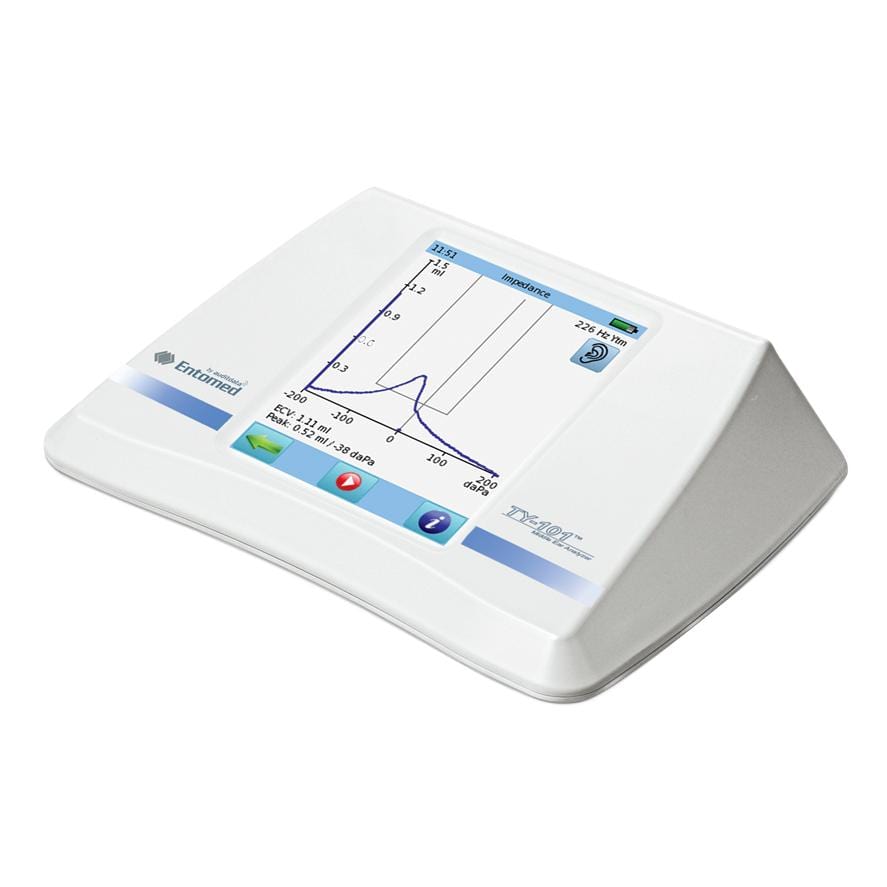

Entomed Ty-101 Tympanometer Screening Tymp

A flexible and upgradeable Tympanometer for quick and reliable testing of middle ear conditions. As a stand-alone unit with simple and intuitive touchscreen control, the TY-101 will support the daily work at the hearing care clinic or during domiciliary visits.

Tympanometry:

• Probe tone: 226 Hz
• High frequency: 1000 Hz
• Multi frequency: 2 tones simultaneously
• Pressure range: -300 to +300 daPa
• Test types: Tymp & Reflex automatic sequence

Acoustic reflex:

• Stimuli (with EP-TY probe): 500, 1000, 2000, 3000, 4000 Hz, Broad band, High pass, Low pass stimulus up to 105 dB HL
• Stimulus presentation modes: Ipsilateral, (contralateral optional)
• Screening levels: 70 to 95 dB HL; step size 5dB
• Test methods: Ipsilateral reflex and automatic reflex threshold, contralateral reflex (Optional)
• Transducers: Entomed DD45 Contra HB7 headphone

Instrument:

• Dimensions: 150 x 210 x 45 mm
• Weight: 475 g
• Connections: USB
• Display: 240 x 320 pixel, 5.0 ﾓ

Standards:

• Tympanometry: IEC 60645-5
• Electrical safety: IEC 60601-1
• EMC: IEC 60601-1-2
• PEMS: IEC 60601-1-4
• Usability: IEC 60601-1-6
• Audiometry: IEC 60645-1
• The device fulfils all requirements of the Medical Device Directive 93/42/EEC, class II a.

OAE modules (optional):

• DPOAE Quick: (Optional)
• DPOAE Diagnostic: (Optional)
